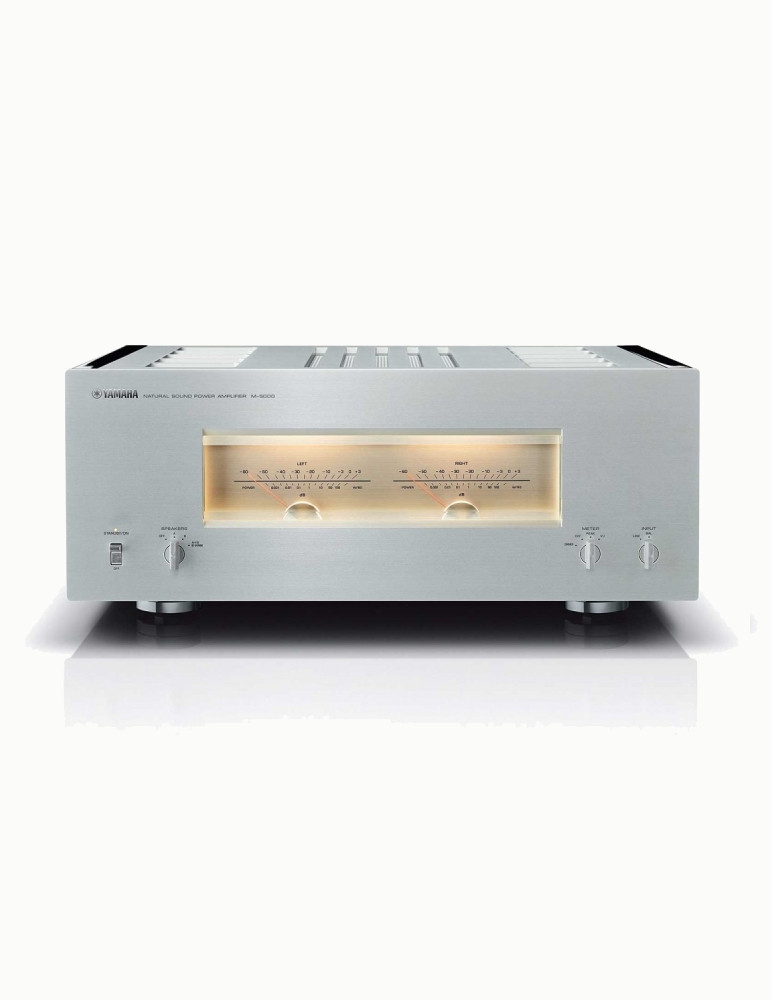

Yamaha M-5000
Yamaha M-5000
Yamaha M-5000
Yamaha M-5000

Yamaha M-5000

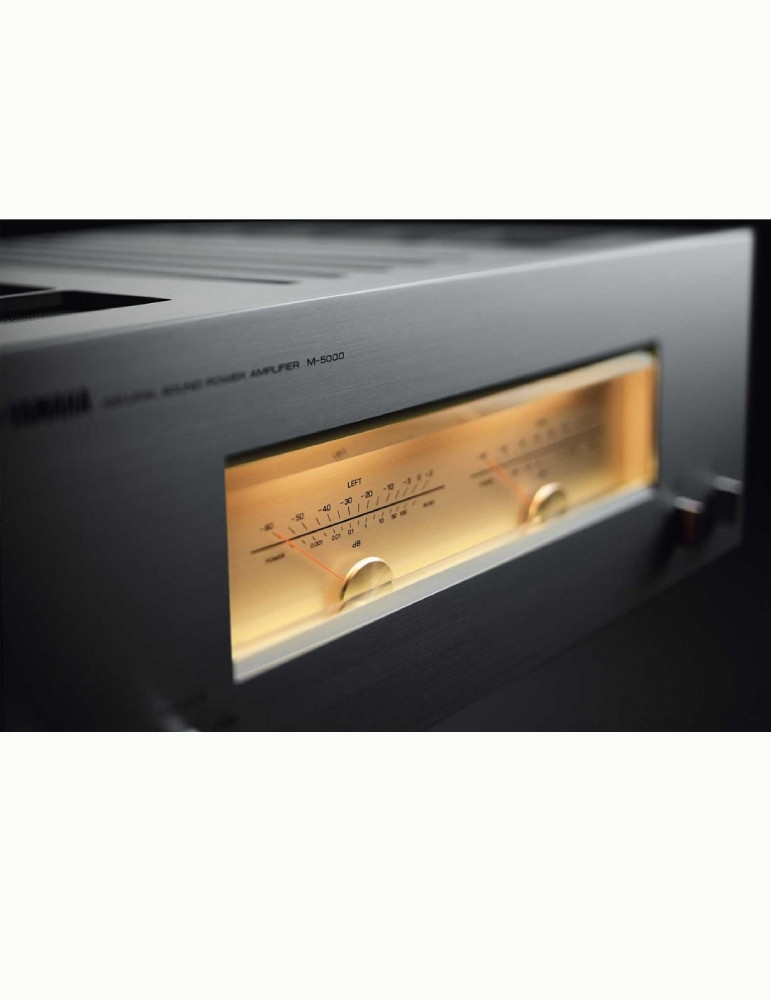

Amplificator de putere din gama audiofila a producatorului Yamaha, topologie balansata, design vintage cu VU meters generoase

YM5000
Yamaha
41.999,00 lei
cu TVA
Culoare: Argintiu
Cantitate
Adauga la favorite
Stoc furnizor - necesita confirmare

Amplificatoare de putere
  Cel mai bun pret - Daca gasesti un pret mai bun contacteaza-ne pentru o oferta
  Livrare gratuita - Pentru comenzi in valoare de peste 500 lei
  Asistenta pentru instalare - Oferim gratuit asistenta pentru instalarea produselor

Avand peste 130 ani de experienta, Yamaha a devenit varful de lance al echipamentelor de sunet din intreaga lume. Modelul M-5000 exprima acest spirit avand o calitate a constructiei excelenta, si inovatii surprinzatoare ce situeaza acest produs in topul absolut al aparatelor HiFi.

Cele mai importante caracteristici ale Yamaha M-5000

200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
Meticulously designed, balanced signal transmission
Floating and balanced power amplifier layout for improved drivability
Perfectly symmetrical design for isolating left and right channels
Low impedance design with shortened signal and power supply paths
Improved construction delivers state-of-the-art rigidity
Massive toroidal core power transformer

Specificatii tehnice Yamaha M-5000

Audio Specifications

Input Terminal RCA: 1, BAL: 1, TRIGGER IN: 1

Output Terminal TRIGGER OUT: 1

Rated Output Power 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 400 (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven)

Dynamic Power Per Channel [IHF] 125 W + 125 W (8 ohm), 170 W + 170 W (6 ohm), 250 W + 250 W (4 ohm), 500 W + 500 W (2 ohm)

Dynamic Headroom 0.97 dB (8 ohm)

Maximum Output Power 220 W + 220 W (4 ohm, 1 kHz, 0.7% THD)

IEC Output Power 125 W + 125 W (8 ohm, 1 kHz, 0.02% THD)

Maximum Effective Output Power [JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm)

Power Bandwidth 10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W)

Damping Factor 300 or higher (8 ohm, 1 kHz)

Input Sensitivity / Input Impedance (BAL) 2.0 Vrms / 47 kohm, (LINE) 1.0 Vrms / 47 kohm [1 kHz 100 W / 8 ohm conversion]

Maximum Input Signal Voltage (BAL) 2.20 Vrms [1 kHz, 0.5% THD], (LINE) 1.10 Vrms [1 kHz, 0.5% THD]

Frequency Response +0 dB / -3 dB (5 Hz-100 kHz), +0 dB / -0.3 dB (20 Hz-20 kHz)

Total Harmonic Distortion Plus Noise 2ch driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP out, 20 Hz-20 kHz, 200 W, 8 ohms)

Channnel Separation 90 dB or higher (1 kHz, Input 1.0 kohm Terminated), 70 dB or higher (10 kHz, Input 1.0 kohm Terminated)

Signal-to-Noise Ratio [IHF-A network, Input 1 kohm shorted] 110 dB

Residual Noise [IHF-A network] (BAL) 40 uVrms, (LINE) 50 uVrms

Meter Class The 2.5th class

General

Power Consumption 400 W
Standby Power Consumption Off Mode: 0.1 W, Standby Mode: 0.2 W
Maximum Power Consumption 800 W
Power Management (Auto Power Standby) Yes
Dimension (W×H×D) 435 x 180 x 464 mm; 17-1/8” x 7-1/8” x 18-1/4”
Weight 26.9 kg
