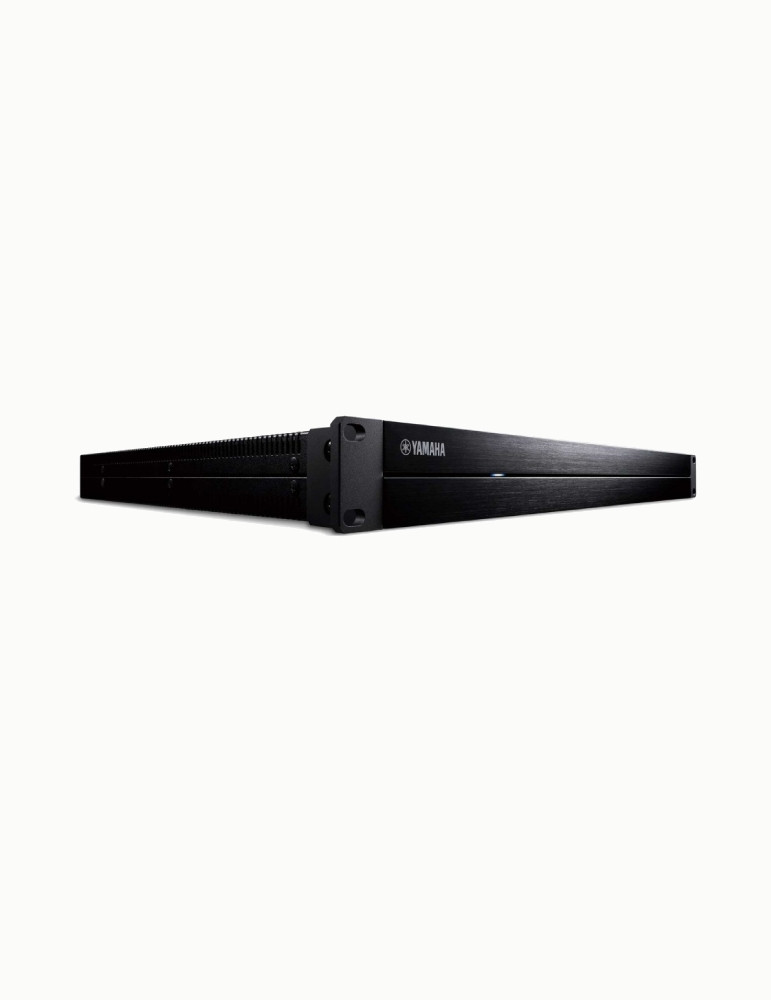

Special proiectat pentru integrare custom multizona, Yamaha XDA-QS5400RK este un amplificator multi zona poate fi folosit in combinatie cu Yamaha XDA-QS5400RK pentru a expanda numarul de boxe sau / si puterea audio totala. Poate fi folosit si pentru a expanda o zona secundara pentru receivere Yamaha home cinema care detin iesire Zone pre out.

Caracteristici de baza amplificator multi zone Yamaha XDA-QS5400RK

Perfect compatibil cu Yamaha XDA-QS5400RK pentru extinderea acoperirii cu boxe in sisteme custom integrated multi-room
Opt canale audiofile cu amplificare in clasa D amplification, care pot functiona in mod bridge si 4-ohm, avand un circuit unic ground loop/hum-free
Patru magistrale audio si jumperi ce permit o varietate mare de configuratii ale boxelor
Sincronizare power on/off cu XDA-QS5400RK via Trigger I/O
Usor de integrat, intrari cu detectare semnal audio, IR I/O

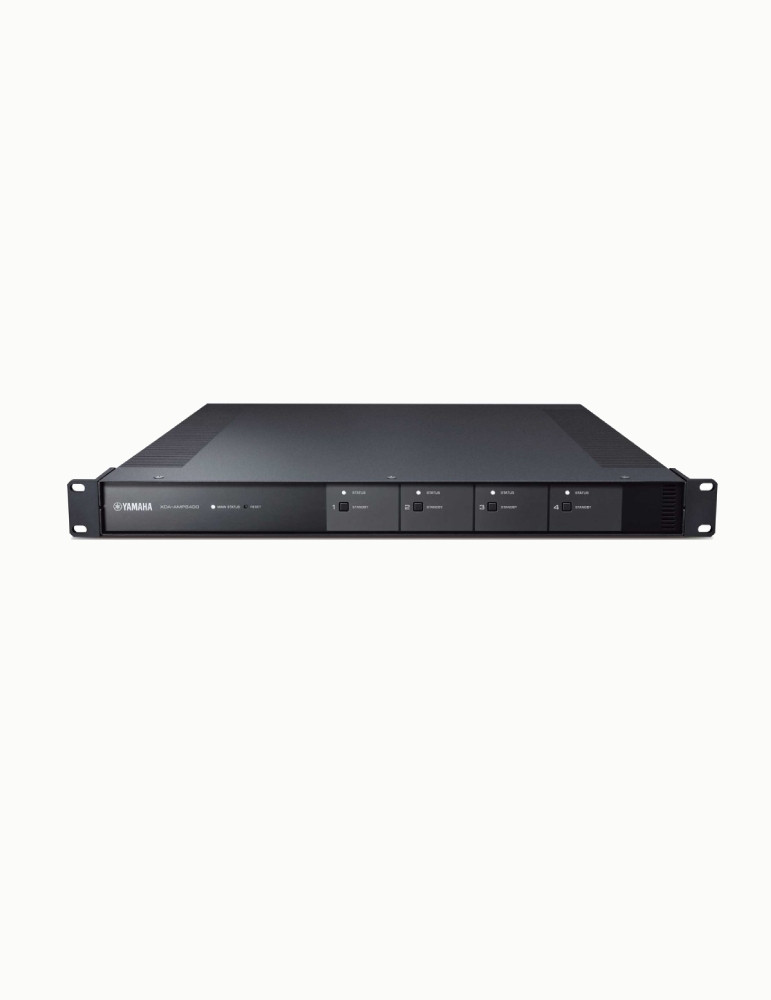

1U inaltime, urechi si faceplate demontabile pentru rack

Specificatii tehnice amplificator multi zone XDA-QS5400RK

Audio

Channel 8 channel (2 channel x 4)
Minimum Speaker load Capability 4 ohm
BTL Connection Yes

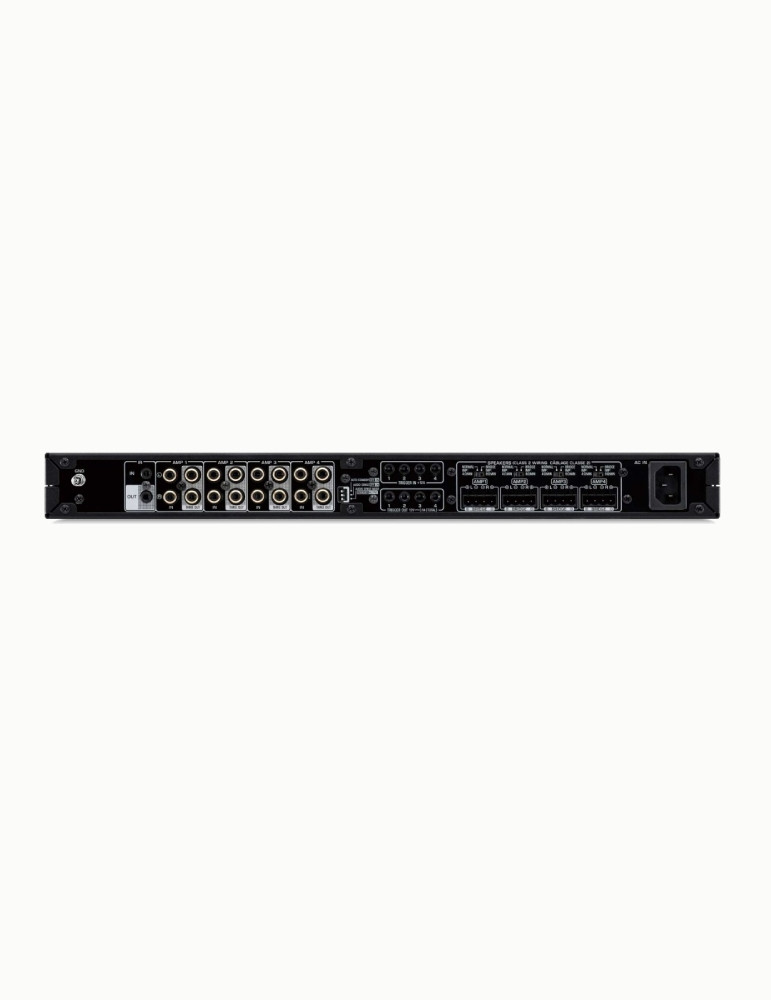

Speaker Output Terminal 4 (Euroblock)
Audio Input Terminal RCA: 4
Audio Output Terminal RCA (2-ch through out): 4
Trigger In / Out 4 / 4
Remote In / Out 1 / 1
Rated Output Power (1 kHz, 0.9% THD, 2ch driven) Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
Rated Output Power (1 kHz, 0.9% THD, 1ch driven) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
Maximum Effective Output Power [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm):130 / 65 W, Bridge (8 ohm): 260 W
Total Harmonic Distortion [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%
Frequency Response [1 kHz + 0 / -3 dB] SP OUT AUX IN: 5 Hz-40 kHz
Channel Separation [SP OUT, 1 kHz / 10 kHz] 78 dB / 62 dB
Signal to Noise Ratio [SP OUT AUX IN] 108 dB
Maximum Input Signal [PRE OUT L / R, 0.9% THD] 1 V
Gain [SP OUT 1 V Input] 25.8 dB
Input Sensitivity [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V

General

Power Consumption 130 W, [All Zone On] No Signal Condition: TBD, [All Zone Off] Audio Sense On: 14.8 W
Standby Power Consumption Audio Sense Disable: 0.3 W, Audio Sense Enable / Mode Standby: 0.5W
Power Management (Auto Power Standby) Yes (On / Off)
Dimension (W × H × D) mm
[Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm;
[Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm;
[Rack Mount] 481 x 44 x 443 mm;
[Rack Mount with Faceplate] 481 x 44 x 453 mm;
Weight 6.0 kg
