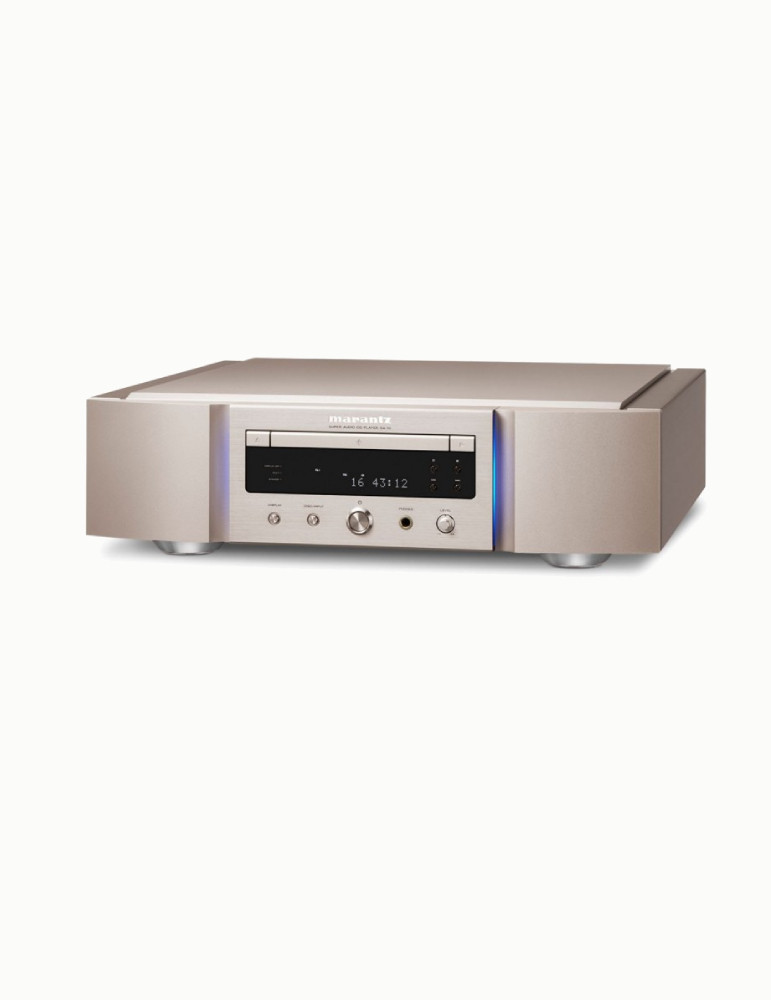

Caracteristici speciale ale SACD player Marantz SA-10S1

• All-new SACD-M3 transport mechanism for CD, SACD and more

• Playback of high-resolution audio compilations on DVD-ROM

• USB input for hi-res audio up to PCM / DXD 384kHz/32bit and DSD11.2MHz

• Isolation of USB and digital inputs to remove noise from connected sources

• USB-A input for USB memory device, external harddisc and iDevice

• Innovative upsampling to DSD and fi ltering using unique Marantz Musical Mastering – Stream technology

• All-new custom-designed 1-bit direct Marantz Musical Mastering – Conversion from DSD to analogue

• High-quality analogue output stage with Marantz HDAMs

• Generous power supply using toroidal transformer

• Dedicated headphone amplifi er with alldiscrete construction

Specificatii tehnice SACD player Marantz SA-10S1

CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC o / o / o / o / o / o
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data - / o / o / o / o
Data Disc Compatibility: DSD / WAV / ALAC <=5.6 / 192 / 96
iPod / iPhone compatible USB input o
DAC operation mode: USB / Coax / Optical o / o / o
Asynchronous mode rear USB o
Bit-perfect transmission o
Signal isolator for DAC Mode operation o
HDAM version HDAM+HDAM SA2
Power Transformer: Toroidal / El o / -
High Grade Audio Components o
Customised Components o
Symmetric circuit layout o
Copper plated chassis o
Extra metal plate for chassis strengthing o
Digital out off / Audio EX Mode o / -
Headphone: Standard / Buffer / Current feedback - / o (HDAM SA2+HDAM) / o
Separated rectifier circuit for analogue and digital circuitry o
Display: Dimmer / Off - / o
Low noise LCD display o
5mm Aluminum top cover o
Selectable filter: CD / SA-CD / DAC-Mode o / - / o
Marantz Musical Mastering o (HD)
Marantz Musical Mastering Stream o
Marantz Musical Mastering Conversion o
Analogue Out (Cinch) 2ch
Balanced Out o
Digital Optical In / Out o / o
Digital Coaxial In / Out o / o
Sample Rate digital In 192 kHz / 24-bit
Gold Plated Cinch silver / nickel
USB Audio (Front) / Made for iPod / Made for iPhone rear / o / o
USB type B input for PC (rear) o
Asynchronous mode rear USB o
Sample Rate USB type B In 384 kHz / 32-bit
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 -> DSD11.2
Headphone Out o
Headphone Volume Control oMechanism SACD-M3 (METAL)
D/A Conversion Marantz Musical Mastering Conversion
DAC IC Marantz Musical Mastering Conversion
Digital Filter DSP (Marantz)
Noise Shaper DSP (Marantz)
Low Pass Filter stage HDAM x 2
Output Buffer HDAM SA2
Frequency Response (Cust.) 2 Hz - 60 kHz
Dynamic Range (SA) 109dB
Signal to Noise Ratio (SA) 112dB
Channel Separation (SA) 105 dB
Frequency Response 2 Hz - 20 kHz
Dynamic Range 98 dB
Signal to Noise Ratio 104 dB
Total Harmonic Distortion 0.0015%
Channel Separation 100 dB
Total Harmonic Distortion (SA) 0.0008%
Available colors: Gold / Silver / Black / Silver-Gold o / - / o / -
Metal Front Panel o
Remote Control RC004PMSA
Power Consumption in W 50
Standby Consumption in W 0.3
Auto power off o
